Hardware / Case fans / NF-A12x25 FLX Where to buy Find NF-A12x25 FLX at a retailer.
Canada · CAD Checked prices expire after 15 minutes. Tax and shipping are extra. Store search results may include other variants or used items; confirm the model before buying. About prices
Specifications Fan size 120 mm Thickness 25 mm Connector 3-pin DC Rated voltage 12 V Speed range 0 – 2000 rpm Maximum airflow 102.1 m³/h (60.09 CFM) Maximum static pressure 2.34 mm H₂O Maximum noise 22.6 dB(A) Mounting hole spacing 105 x 105 mm Units per pack 1
Model notes 120 × 120 × 25 mm nominal frame; 27 mm with anti-vibration pads. Three-pin DC speed control; verify the motherboard header's voltage and current rating. Check the case mounting-hole spacing and space for pads, cables and screw heads. Airflow, pressure and noise figures are manufacturer ratings; the 3D preview does not calculate temperatures or noise.

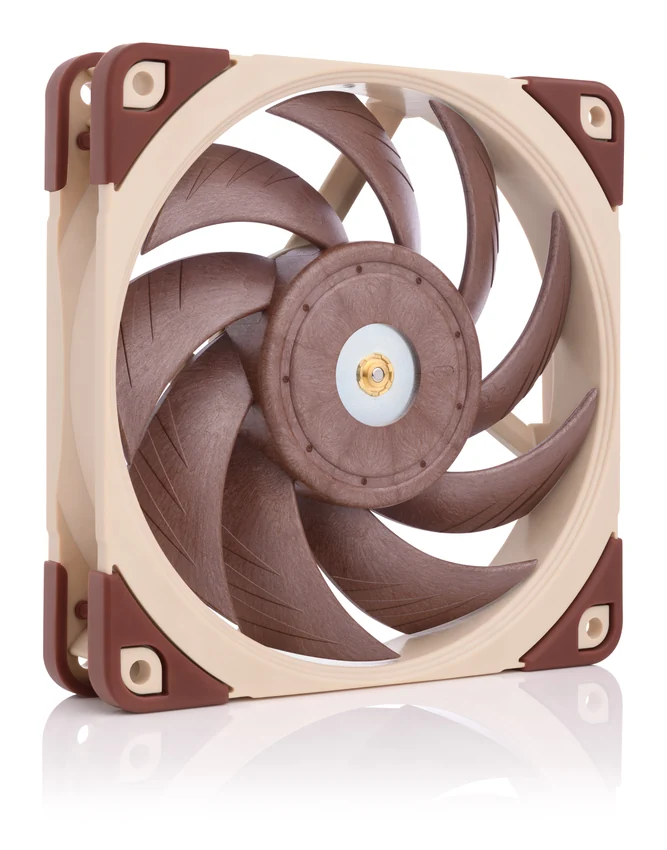

Specification source ↗ Image source Pictured: Noctua NF-A12x25 FLX.
Source ↗ Photo: Noctua / Rascom Ges.m.b.H. · Manufacturer product media
