Hardware / Case fans / NF-A14 PWM Where to buy Find NF-A14 PWM at a retailer.
Canada · CAD Checked prices expire after 15 minutes. Tax and shipping are extra. Store search results may include other variants or used items; confirm the model before buying. About prices
Specifications Fan size 140 mm Thickness 25 mm Connector 4-pin PWM Rated voltage 12 V Speed range 0 – 1500 rpm Maximum airflow 140.2 m³/h (82.52 CFM) Maximum static pressure 2.08 mm H₂O Maximum noise 24.6 dB(A) Mounting hole spacing 124.5 x 124.5 mm Units per pack 1
Model notes 140 × 140 × 25 mm nominal frame; 27 mm with anti-vibration pads. Four-pin PWM speed control; verify the motherboard header's voltage and current rating. Check the case mounting-hole spacing and space for pads, cables and screw heads. Airflow, pressure and noise figures are manufacturer ratings; the 3D preview does not calculate temperatures or noise.

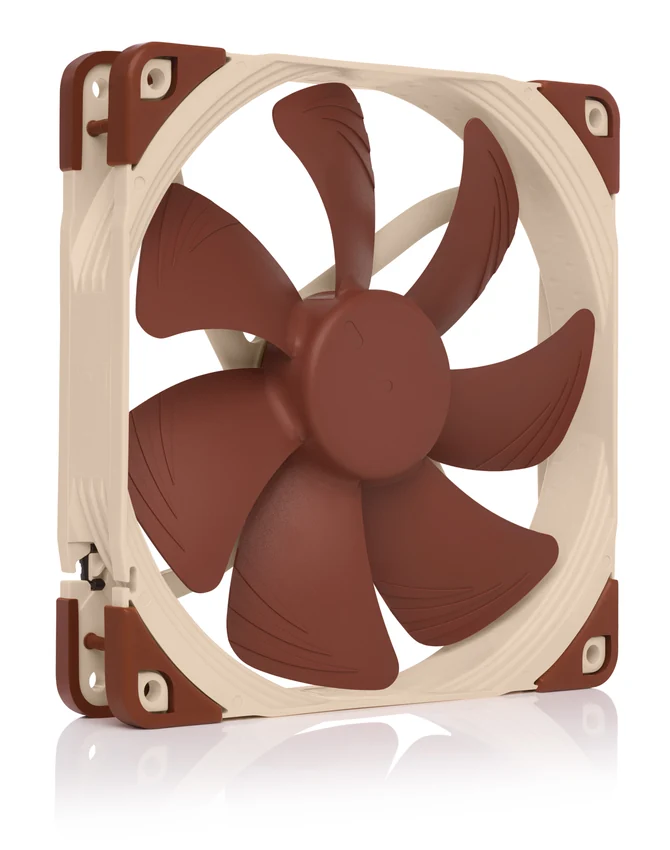

Specification source ↗ Image source Pictured: Noctua NF-A14 PWM.
Source ↗ Photo: Noctua / Rascom Ges.m.b.H. · Manufacturer product media
