Hardware / Case fans / NF-A20 FLX Where to buy Find NF-A20 FLX at a retailer.
Canada · CAD Checked prices expire after 15 minutes. Tax and shipping are extra. Store search results may include other variants or used items; confirm the model before buying. About prices
Specifications Fan size 200 mm Thickness 30 mm Connector 3-pin DC Rated voltage 12 V Speed range 0 – 800 rpm Maximum airflow 146.9 m³/h (86.46 CFM) Maximum static pressure 1.08 mm H₂O Maximum noise 18.1 dB(A) Mounting hole spacing 170 x 170 mm, 154 x 154 mm, 110 x 180 mm Units per pack 1
Model notes 200 × 200 × 30 mm nominal frame; 32 mm with anti-vibration pads. Three-pin DC speed control; verify the motherboard header's voltage and current rating. Check the case mounting-hole spacing and space for pads, cables and screw heads. Airflow, pressure and noise figures are manufacturer ratings; the 3D preview does not calculate temperatures or noise.

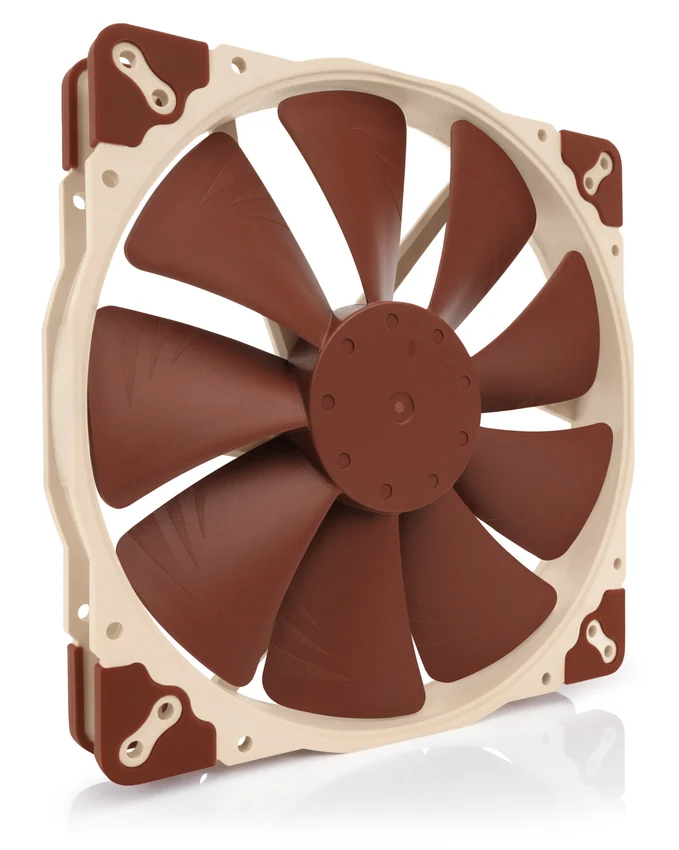

Specification source ↗ Image source Pictured: Noctua NF-A20 FLX.
Source ↗ Photo: Noctua / Rascom Ges.m.b.H. · Manufacturer product media
