Hardware / Case fans / NF-S12B redux-1200 PWM Noctua NF-S12B redux-1200 PWM 120 mm · 25 mm frame · 4-pin PWM
120 mm · 4-pin PWM
Compare this part ↗ Where to buy Find NF-S12B redux-1200 PWM at a retailer.
Canada · CAD Checked prices expire after 15 minutes. Tax and shipping are extra. Store search results may include other variants or used items; confirm the model before buying. About prices
Specifications Fan size 120 mm Thickness 25 mm Connector 4-pin PWM Rated voltage 12 V Speed range 400 – 1200 rpm Maximum airflow 100.6 m³/h (59.21 CFM) Maximum static pressure 1.31 mm H₂O Maximum noise 18.1 dB(A) Mounting hole spacing 105 x 105 mm Units per pack 1
Model notes 120 × 120 × 25 mm nominal frame. Four-pin PWM speed control; verify the motherboard header's voltage and current rating. Check the case mounting-hole spacing and space for pads, cables and screw heads. Airflow, pressure and noise figures are manufacturer ratings; the 3D preview does not calculate temperatures or noise.

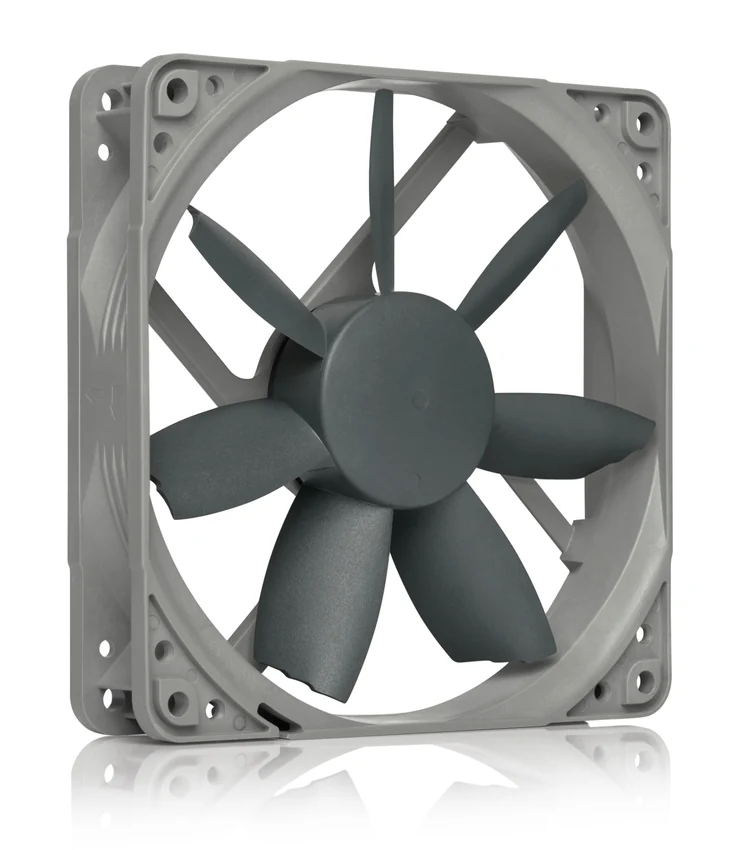

Specification source ↗ Image source Pictured: Noctua NF-S12B redux-1200 PWM.
Source ↗ Photo: Noctua / Rascom Ges.m.b.H. · Manufacturer product media
