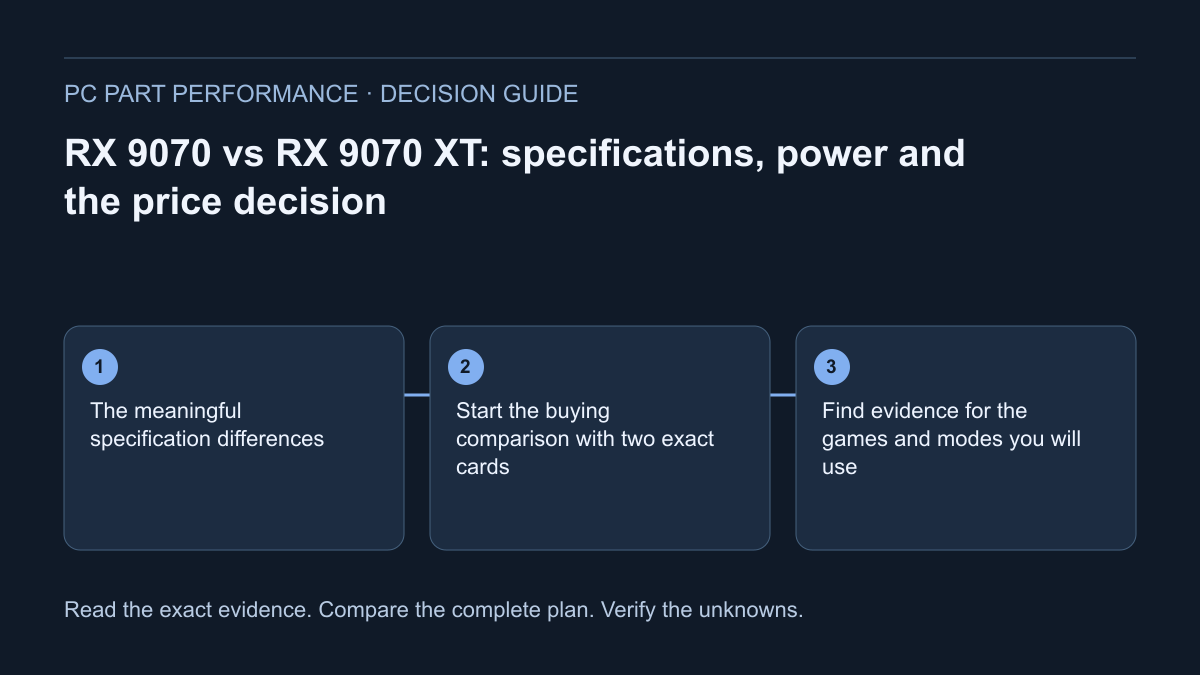

RX 9070 vs RX 9070 XT: specifications, power and the price decision

The meaningful specification differences

AMD lists 56 compute units and 220 W typical board power for the RX 9070, compared with 64 compute units and 304 W for the RX 9070 XT. Both specification tables list 16 GB GDDR6 and a 256-bit memory interface. The XT designation therefore does not mean a larger advertised memory capacity in this pair.

These figures describe AMD’s designs. They do not establish the dimensions, acoustic behavior or exact power limits of every retail card. Typical board power is also different from measured whole-PC consumption. Keep the specification comparison separate from a game-performance result and from the requirements on the actual partner-card page.

AMD — Radeon RX 9070 specifications · AMD — Radeon RX 9070 XT specifications

Start the buying comparison with two exact cards

Create a shortlist using the full partner brand, model, capacity, edition and part number. A retailer’s abbreviated “9070 XT” title is insufficient for a physical-fit decision. Confirm the item actually supplied, including whether it is new, refurbished or sold by a marketplace merchant. Use current Canadian CAD or US USD listings consistently rather than comparing a converted headline with a real local checkout.

Record card price, delivery charges, taxes where relevant, return conditions and any extra part the installation requires. Missing prices remain missing. The cheapest known card listing does not necessarily produce the cheapest complete upgrade if it also requires a supply, case or cable change. This article has no current offers and does not claim to have searched every seller.

Find evidence for the games and modes you will use

A larger compute-unit count cannot be converted into a universal percentage of extra FPS. A useful comparison records game version, resolution, quality, ray tracing, upscaling, frame generation, CPU, memory and test scene. Read the original test method and compare matching conditions. A headline average that combines unlike modes may conceal the question you actually need answered.

The performance evidence view should tell you whether a suitable measured record exists. If it does not, keep the result unavailable rather than fabricating a number from the specification table. A manufacturer’s feature list can confirm advertised capabilities; it is not independent testing of image quality, latency or sustained performance. This is a researched specification and purchase-process comparison, not a hands-on review.

Check the installed layout and power connections

Use the exact card’s length, height and thickness with the case documentation for the intended fan and radiator arrangement. A case’s largest headline allowance can change with the installed cooling. Fractal’s original North sheet is one documented example of conditional geometry; it must not be applied to North XL or unrelated cases.

Compare the selected partner card’s power instructions with the exact PSU, available approved cables and the rest of the system. AMD’s design-level recommendations in the table are useful context but do not override those exact instructions. A supply’s wattage alone does not establish its connectors, physical fit or modular cable compatibility. The builder’s preview is a visual aid, while documentary fit questions remain separate checks.

Fractal Design — Original North English product sheet · CORSAIR — PSU cable compatibility explainer

Let the price difference answer a named need

Write what spending more would accomplish. Perhaps comparable game evidence supports a display goal; perhaps an application requires a particular capability; perhaps either choice already satisfies the task and the remaining budget is better retained. Define the condition before selecting the more expensive model. Do not call a card “better value” solely because a theoretical number is larger.

Keep three routes visible: the exact RX 9070, the exact RX 9070 XT, and keeping the current card. Calculate only documented complete costs. If current prices or comparable tests are absent, postpone the price/performance verdict while retaining the specification and compatibility work. The useful outcome is a clear shortlist with the next unresolved check, not a winner that hides its assumptions.

Apply this to your PC

Sources and scope

• AMD — Radeon RX 9070 specifications

  RX 9070 design: 56 compute units, 16 GB GDDR6, 256-bit memory, 220 W typical board power and 650 W minimum PSU recommendation. Manufacturer design specifications; exclude XT/GRE and exact partner geometry. No game-chart values are reused. Source inspected 2026-10-13.

• AMD — Radeon RX 9070 XT specifications

  RX 9070 XT design: 64 compute units, 16 GB GDDR6, 256-bit memory, 304 W typical board power and 750 W minimum PSU recommendation. Manufacturer design specifications, not a measured FPS or whole-system power result. Partner requirements can differ. Source inspected 2026-10-13.

• Fractal Design — Original North English product sheet

  Conditional component allowances in the original North, including its cooling layout. Exclude North XL and other editions; a dimensional allowance is not total-build certification. Source inspected 2026-10-13.

• CORSAIR — PSU cable compatibility explainer

  Modular cable compatibility must come from the applicable manufacturer documentation. Scope is CORSAIR’s documented families; do not apply its type names to other brands. Source inspected 2026-10-13.
